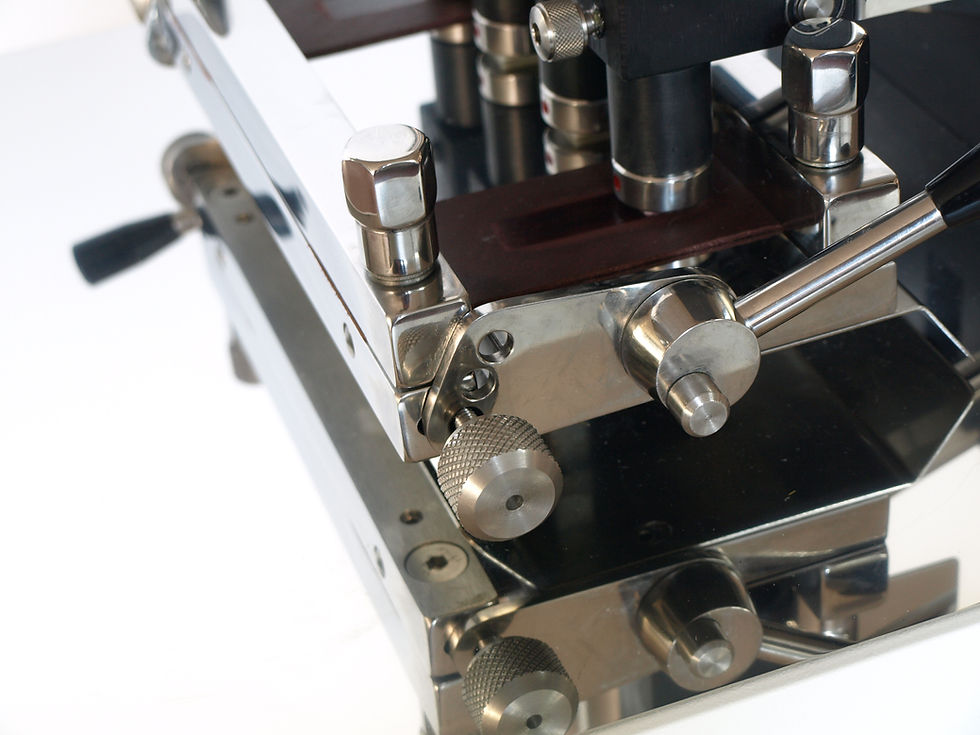

Prova Strofinio -Rub Fastness Tester Veslic type
Determines dry and wet colour fastness resistance to cycles provided by rubbing.
APPARECCHIO PER LA DETERMINAZIONE DELLA SOLIDITA' DEL COLORE (SOLIDITA' ALLA LAVORAZIONE E ALL'USO DEL CUOIO) ALLO STROFINIO DETTO ANCHE "VESLIC"
Caratteristiche Tecniche
Normative:
EN ISO 20344: 7.3IUP 450 SLF 450 DIN 53339BS EN ISO 11640UNI EN ISO 11640DIN 53340NF EN ISO 5402JIS K 6545I.U.F 450I .U .F 454I .U.F 458
Caratteristiche costruttive:-
- basetta portante in lamiera di acciaio debitamente verniciata antiacido in resina epossidica
- Gruppo di movimento con motoriduttore ad ingrassaggio permanente
- Piattaforma orizzontale in ACCIAIO INOX 18/8 con morsetti per la presa dei campioni (n .1 secondo le norme I. U . F- n° 4 secondo le modifiche T.N.O e Pirmasens)
- Sistema per l'allungamento del 10% del provino o dei provini
- Portafeltro autoallineanti guidati per feltrini 15 x 15 mm. con carico di 500 g.
- Pesi supplementari per portafeltro per ottenere 1.000 g.
- Spazio di movimento va et vien: selezionabile dall'operatore 35-40 mm oppure 50 mm.
- Cicli min: 40
Gestione di tutte le funzioni, delle sicurezze e la selezione cicli di lavoro con Pannello Colour Easy Touch Ultima Generazione.
Tecnical Specifications
This equipment features n°4 felt carrier stations capable of working with 500 gr or 1 Kg applied weight.
The operator is in order to test 4 different samples at once. Automatic cycle counter allows self-repeating motions up to 9.999 rounds.
Anti-acid outer varnishing guarantee rust avoidance.
This equipment is produced in accordance with:EN ISO 20344: 7.3IUP 450 SLF 450 DIN 53339BS EN ISO 11640UNI EN ISO 11640DIN 53340NF EN ISO 5402JIS K 6545I.U.F 450I .U .F 454I .U.F 458
Construction Specifications
- sheet-steel carrying structure
- varnished with antiacid epoxy resin
- movement unit with radiomotor with permanent greasing
- stainless steel 18/8 horizontal table with clamps for the drawing of specimens (No. 1 according to l.U.F. specifications No. 4 according to T.N.o. and Pirmasens modifications)
- System for the elongation of 10% of the specimen or the specimens
- Felt clamps 15 x 15 mm. with load of 500 gr.
- Extra weight for 1.000 total.
- Movement space: more than 35 mm.
- Brown and Inox steel supports
- Steel shielded self centering bearings anti-condensate
Functions, Alarm and Cycles selection managed by Last Generation Easy Colour Touch Panel
Normative di Riferimento
EN ISO 20344: 7.3
IUP 450
SLF 450
DIN 53339BS
EN ISO 11640
UNI EN ISO 11640
DIN 53340
NF EN ISO 5402
JIS K 6545
I.U.F 450
I .U .F 454
I .U.F 458
